Cable Management Systems for Duty Vests: A Guide for LEOs

Somewhere between the radio, the body camera, and the earpiece, the modern duty vest became a wiring harness. Most officers solve it the same way: tuck the cord behind a pouch, hope it holds, then re-tuck it four times a shift.

A cable management duty vest setup is not a cosmetic concern. Cords that migrate snag on door frames, pull microphones out of position, and fail at the connector months early. Good duty vest cable routing keeps every line short, anchored, and predictable. Here are the carrier features, hardware, and routing patterns that hold up on patrol.

Why Modern Duty Vests Have a Cable Problem

Twenty years ago a patrol officer wore one cord. Today's loadout runs three or four, all terminating on the same panel.

The trouble is not the number of duty vest cables. It is that each was designed in isolation. The radio maker assumed a uniform epaulette. The camera maker assumed a clean shirt front. Run multiple cables, police vest or plate carrier, and you get crossings. Every crossing traps a cord.

Officers running cables on plate carrier platforms have less real estate, and the rules that govern how you set up a plate carrier apply to the cords crossing it. Either way the result is a system nobody planned and everybody adjusts on the move.

The Cables a Patrol Officer Now Carries

Before you route anything, count what is actually on the vest. Most officers guess low.

The radio mic cable is the long one, a coiled or straight run from a belt or chest-mounted radio to a shoulder mic. An earpiece cable branches off that mic and travels to the ear under the collar.

A BWC tether appears whenever the camera is separated from its lens, battery, or dock. Add a push-to-talk line and four runs compete for six inches of chest. The push-to-talk puck is the anchor that decides the rest of the layout, so place it before you route anything else. Mount it high on the chest panel where you can reach it without looking and where a seat belt will not ride across it, and secure it at the body of the puck rather than by its cable.

What Tangled Cables Cost You in the Field

Loose cord is a cable snag hazard on every door frame, seat belt, and subject you go hands-on with. A snagged mic cord tears the microphone off its mount when you need backup.

The slower cost is cable failure. Cords that flex in an unsupported arc wear at the strain relief where the jacket meets the connector, and the first symptom is intermittent audio, not a clean break. Then, agencies have to replace microphones whose only fault was routing.

Built-In Vest Features That Solve Cable Routing at the Source

Routing costs nothing to specify and a great deal to retrofit, which is why it can help to note in the purchase order.

Vest cable routing features anchor a cord at a fixed point instead of asking tape or friction to hold it. A radio loop, a mic loop near the zipper, a shoulder epaulette, or an equipment loop above the ID panel each give a cord one path. Those four are standard hardware across Premier's Patrol series.

A carrier pass through or an internal cable channel pulls the cord out of the exterior plane entirely, though that hardware is far less common on overt patrol carriers than the loops above.

When you compare law enforcement patrol vests, treat routing hardware as a spec line, not a bonus feature. Retrofitting it later is always worse.

Internal Pass Through Ports and Hidden Channels

A cable pass through vest moves the cord between the outside and the interior of the carrier through a sewn opening, so the run stays protected and surfaces only where needed.

Look for an internal cable port near the shoulder or high on the chest panel, sized for a connector, not bare cable. Hidden cable routing pays off twice: the cord cannot be grabbed, and it cannot catch. The tradeoff is service access, so confirm you can replace a failed cord without disassembly. Most overt patrol carriers, Premier's included, solve routing with external loop hardware instead of an internal port, so treat a pass through as a question to ask during evaluation rather than a feature to assume.

Shoulder Strap Routing and Cable Sleeves

Shoulder strap cable routing is the most natural path on a duty vest because it follows the cord's destination. A mic run climbing the strap arrives with no slack loop crossing your chest.

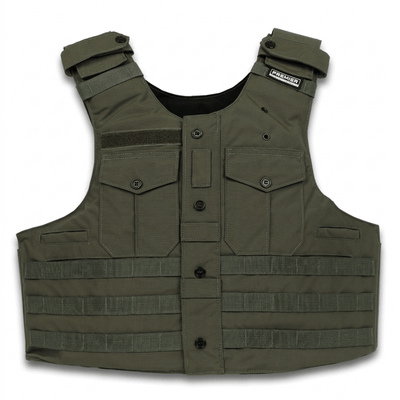

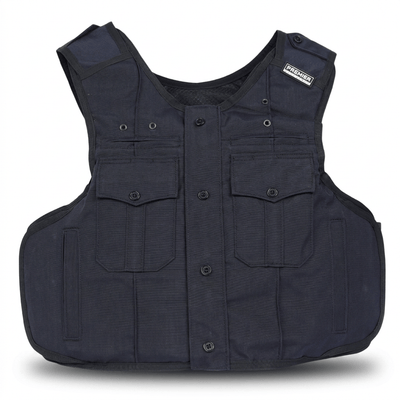

Epaulettes make this work. Patrol India and Patrol Echo both carry shoulder epaulettes, and India's are specified for rank slides and mic routing. A cable sleeve carrier arrangement, where the cord rides in a fabric channel along the strap, adds abrasion protection and stops the line rolling out.

Front Placket and Zipper Cord Exits

A placket cable exit or comms routing slot uses the flap covering the front zipper as a channel. The cord runs behind the placket and exits at a button gap, keeping the run hidden and the mic within reach.

Premier builds this in. Patrol Bravo places a radio loop under the top button of its flap-covered zipper, and Patrol Charlie sets its microphone loop to the top left of the zipper. Zipper cord routing to a fixed front exit cable port beats improvised tucking.

Aftermarket Hardware: When the Carrier Doesn't Have Built-In Routing

Most agencies manage carriers they already own. Aftermarket cable management is how you fix routing on vests already in service, and it is the rare category of police vest accessories that pays for itself in gear you do not have to replace.

The rule is simple. Every cord needs two anchor points, one near the source and one near the termination, with no unsupported span longer than a hand's width. Cable retention hardware is only the means of creating those anchors.

Match hardware to the job: a microphone you reach for constantly needs a retention point that releases under load. A charging lead you touch twice a shift can be locked down.

Mic Loops, Clips, and Anti-Rotation Mounts

A mic loop is the simplest fix: an elastic or webbing loop the microphone slides into, upright, with nothing to break. It solves a different problem than a police radio holder, which carries the radio body rather than the cord or the mic.

Spring clips are faster, but they rotate. A microphone spun ninety degrees points its element at your armpit, and you will not notice until dispatch asks you to repeat. An anti rotation mic clip fixes that with a keyed post, a second contact point, or a locking swivel. A clip threading MOLLE webbing rather than pinching fabric will not walk downward.

Hook and Loop and Velcro Cable Tracks

Hook and loop cable management is the most flexible option and easiest to get wrong.

A Velcro cable track is a series of short reusable straps set along the cord's path, not one long wrap. Spacing them four to six inches apart holds a line flat and lets you release one point without unwinding the run. Loop ID fields sewn to the vest front give a ready surface. Skip adhesive-backed hook tape, which lifts and leaves residue.

Cable Sleeves, Spiral Wrap, and Heat Shrink

Two cords running the same path are perfect to bundle together.

A cable sleeve for police use is a braided sheath that slides over the run, resisting abrasion and turning three lines into one. Spiral cable wrap does the same with one advantage: you can branch a cord out anywhere along its length, which suits a mic and earpiece that split partway up. A heat shrink cable bundle is permanent, so save it for fixed runs.

Routing Patterns That Work: Police Vest Setup by Assignment

Hardware without a plan relocates the mess. Cable routing is the part of a police vest setup that gets decided last and regretted first. A cable routing pattern is the decision you make once, document, and repeat across the shift and the department.

Three patterns cover almost every patrol assignment. Each trades access against exposure differently, and the right mic cord routing method depends on how often the officer needs hands on the equipment versus how often the cord is exposed.

Choose a duty vest cable layout by role, not preference, and write it down. Officers rotate through assignments and gear gets reissued. A documented layout survives both, and it turns duty vest setup from an individual habit into something an agency can train.

Internal Under Uniform Routing

Running the cable under uniform fabric hides the entire span between radio and mic, exiting at the collar or a button gap. Internal cord routing gives the cleanest profile and the lowest snag risk of the three. It is also slowest to service, and it puts the cord against sweat.

• Best snag resistance and the most professional appearance
• Cord is shielded from weather, abrasion, and grabbing
• Slowest pattern for swapping a failed cord mid-shift
• Inspection means opening uniform layers

Under Carrier Surface Routing

Routing under plate carrier surfaces threads the cord between the carrier shell and the uniform, so it stays covered while remaining outside your clothing. Running a cable under carrier panels is the middle ground: access is faster, and the carrier protects the run.

• Strong snag resistance with far easier access
• Keeps the cord off the skin and out of sweat
• Needs a pass through or open edge to enter and exit
• Can shift when the cummerbund is adjusted

External Routing With Retention Points

External cable routing leaves the cord outside the carrier, controlled by a chain of anchors instead of concealment. Done properly this is not the lazy option. A cable retention duty vest setup with an anchor every four to six inches is fast to inspect and easy to standardize.

• Fastest inspection and cord replacement
• Works on carriers with no built-in routing
• Highest exposure to snags and grabbing
• Only as reliable as its least secure anchor

Managing Slack: The Detail That Separates Working Systems from Failing Ones

Every failed cable system fails the same way: both ends anchored, the middle ignored.

Cable slack management starts with a measurement. Route the cord with the officer in the vest, arms raised and reaching across the body, and mark the shortest length that allows full motion. That is your target, not the shipped length.

Measure twice a year, not once. A run sized over a summer short-sleeve is tight over a base layer and an external jacket, and the cord pulled taut in January is the one that tears a microphone off in March. An officer running a cord inside the uniform should also expect salt and moisture at the connector, so build a connector wipe into the seasonal check rather than waiting for the intermittent audio that announces it.

For excess cord control, fold the surplus into a flat figure-eight and secure it at two points rather than coiling it. A coil is a handle. A flat fold is not. Never let a loop hang below the carrier hem.

Cable Management for Specific Roles

One standard does not fit three assignments. A police vest setup that works for a patrol officer will fight a plainclothes detective.

Patrol cable management is built around a shift in and out of a vehicle, with one radio and a camera that has to stay aimed. SRT cable routing has to absorb a heavier communications load and gear that changes between callouts. Plainclothes cable management answers to one requirement: nothing shows.

What changes between the three is which constraint wins. Build the department standard as three variants of one system and training stays simple.

Patrol Officer Single Radio Setups

Single radio cable management is the most common setup and easiest to get right.

One radio, one microphone, one optional earpiece. Run the mic cord from the radio up the strong-side interior of the carrier, exit at a placket or shoulder anchor, and terminate at a loop holding the microphone upright and clear of the camera's view. Keep the exposed length under a hand's width, and verify it does not cross the seat belt path.

SRT and Tactical Multi Radio Setups

SRT cable management adds a second radio, a headset push-to-talk line, and often a helmet run to the same chest panel.

A multi radio cable system needs channel separation. Give each radio its own side and its own vertical lane, and never let two mic cords share an anchor, because pulling one moves the other. Bundle only cords that terminate in the same place. Premier's tactical SRT gear is built on the PALS real estate these layouts require.

Antennas deserve the same treatment as cords. A full-length whip on a chest-mounted radio sweeps the side of the officer's head on every turn, catches on door frames, and levers the radio out of its pouch. A 90-degree adapter or a shorter stubby antenna moves the mast off the face and out of the snag path, at a cost in range that comms staff should sign off on before it becomes the standard. Route each antenna into the same vertical lane as the radio it belongs to, so a tangle tells you which radio to check.

Plainclothes and Detective Concealed Routing

Concealed cable routing carries one requirement the others do not: nothing visible, from any angle, while moving.

Plainclothes earpiece routing runs the wire inside the collar and down the strong-side interior of the shirt to a radio at the waist or in a bag. Use a clear acoustic tube rather than a visible speaker, secure the wire at the collar so head movement cannot tug it loose, and check the run in a mirror while turning.

What Cable Management Failure Looks Like on Body Cam Footage

Every routing mistake has the potential to be recorded, and cable failure on body camera footage shows up in predictable ways. A cord draped across the lens puts a black bar through the frame for an entire encounter, and no body camera mount holds a square picture while a mic line pulls on it. A camera pulled sideways by a taut mic line records a subject's shoes instead of their hands. Audio dropouts arrive exactly when the volume goes up.

A mic cord during use of force is worse than a documentation problem. It hands a subject something to grab and fouls your support-side reach. Route so nothing crosses the centerline.

Building a Department Cable Management Standard

Officers solving this individually is how agencies end up with sixty answers.

A department cable management policy does not have to be long. Name the approved routing pattern for each role, the approved hardware, the maximum exposed cord length, and the inspection interval. You write it once and every police duty vest the agency issues reaches an officer the same way.

Standardized cable routing pays off in unexpected places. Field training gets simpler, gear transfers between officers without rework, and failures become a supply question instead of a mystery. An agency duty vest standard that specifies routing alongside sizing and threat level closes the last gap. The LEOnline® program supports agencies writing it.

Specifying Routing Features at the Procurement Stage

The cheapest time to solve routing is before carriers ship.

Carrier procurement cable features belong in the specification with everything else. Write RFP cable management language that names what you need: the number and placement of radio and mic loops, epaulettes, equipment loops, and whether MOLLE coverage supports clip-on retention. Understanding how PALS and MOLLE work on law enforcement carriers lets you write those lines precisely instead of asking for cable management and taking what arrives.

Inspection and Maintenance of Cable Systems

A cable maintenance duty vest routine takes sixty seconds. Almost nobody runs one.

Build a cord wear check into the inspection covering armor panels and carrier hardware. Flex each cable at the connector and look for jacket cracking, stiffness, or exposed shielding. Confirm every anchor holds. Test audio through the earpiece, not the speaker. Log failures by position, because repeats in one spot mean the routing is wrong.

How LEOnline® Carriers Support Clean Cable Management

Premier's LEOnline® catalog is built on one idea: a duty vest with cable routing considered in the design beats one with routing added after.

Across the Patrol series that shows up as specified hardware. Patrol Golf carries a radio loop plus a mic loop between the top and second button, and Patrol Hotel adds an equipment loop above the right-front ID for a camera or mic. The Rapid Duty Vest includes radio and body camera loops in all four builds.

These are LEOnline® cable ready carriers in the practical sense: certified Level IIIA soft armor, USA-made and Berry Compliant, with configurable ID and badge areas across the series and fully agency-configurable MOLLE. Agency carrier procurement runs through a request a quote.

Cable management is not the most interesting part of outfitting a duty vest, and it is one of the few equipment problems you can solve completely. Pick a pattern, anchor every run, control the slack, write it down, and inspect it. The gear your officers already carry will work better and last longer.

Ready to equip your department with carriers built for clean cable routing? Premier Body Armor's Patrol series and Rapid Duty Vest are available to verified agencies through LEOnline®, with credential verification and a guided fit session. Start a quote and configure a vest your officers will not have to fix.
